XTSL10S8503DC

10Gbps 850nm SFP+ Transceiver

Features

 Hot-pluggable SFP+ footprint

 Support 10.5Gbps bit rate

 850nm VCSEL laser and PIN photo-detector

 Maximum link length of 300m on OM3 MMF

 Power Dissipation <1W

 Single +3.3V power supply

 LC duplex connector

 Operating Case temperature range 0°C to 70°C

 RoHS-6 compliant

 Compliant with SFF-8431

 Compliant with SFF-8472

 Compliant with IEEE 802.3ae 10GBASE-SR

Applications
 10GBASE-SR/SW Ethernet

 10G Fibre Channel

 Other Optical Links

Ordering information

Description

XTSL10S8503DC transceivers is designed for using in 10.3Gb/s data rate over multimode fiber. The transceiver is compliant with SFF-8431, and the mechanical SFP28 plug is compatible with SFF-8432. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.

Absolute Maximum Ratings

Electrical Characteristics

Optical Parameters

Note1:Sensitivity for 10.3125Gb/s PRBS31 and BER better than or equal to  1E-12.

General Specifications

Digital Diagnostic Functions

XTSL10S8503DC transceivers can be used in host systems that require either internally or externally calibrated digital diagnostics.

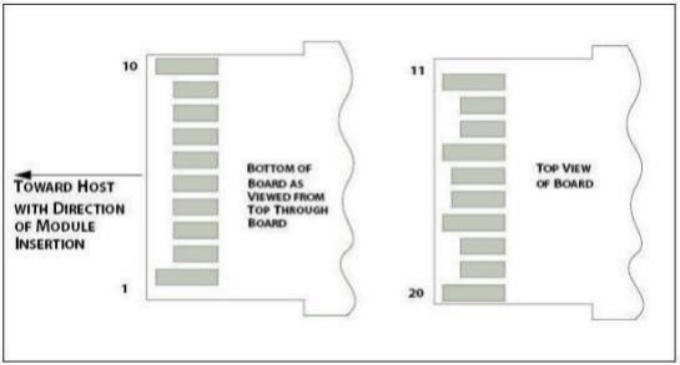

Pin Assignment:

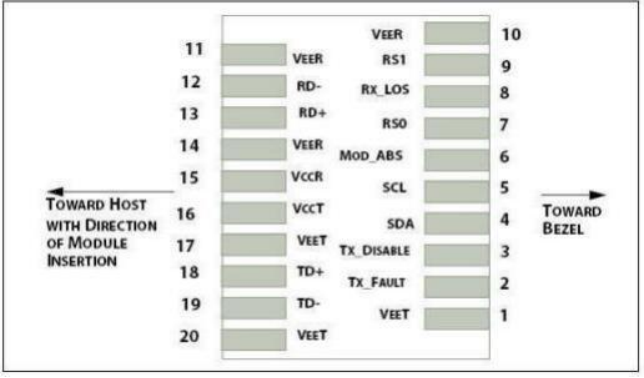

Pin Descriptions

Note1: Module ground pins GND are isolated from the module case.

Note2: The Tx_Fault output is an open collector/drain output, which should be pulled up with a 4.7k to 10k ohms resistor on the host board.  Pull up voltage should be between 2.0V to Vcc + 0.3V. A high output indicates a transmitter fault caused by either the TX bias current or the TX output power exceeding the preset alarm thresholds. A low output indicates normal operation.  In the low state, the output is pulled to <0.8V.

Note3: Laser output disabled on TDIS >2.0V or open, enabled on TDIS <0.8V.

Note4: Shall be pulled up with 4.7K-10Kohms to a voltage between 3.15V and 3.45V on the host board.

Note5: LOS is open collector output. Should be pulled up with 4.7-10k ohms on host board to a voltage between 2.0V and 3.6V. Logic 0 indicates normal operation; logic  1 indicates loss of signal.

Note6: VccR and VccT are the receiver and transmitter power supplies. They are defined as 3.3V ±5% at the SFP+ connector pin.

Note7: They areAC-coupled, differential lines with  100  Ω differential termination inside the module.

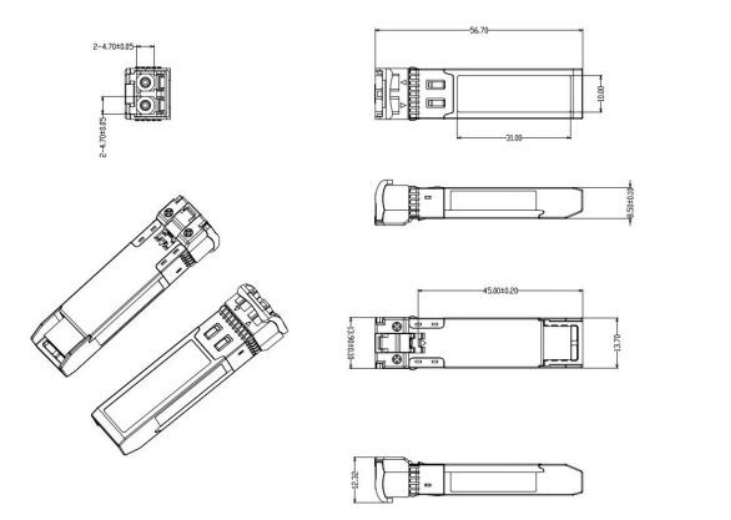

Mechanical Dimensions

Revision History

Important Notice

Performance figures,  data  and  any  illustrative  material  provided  in  this  data  sheet  are  typical  and  must  be specifically confirmed in writing by Zkosemi  before they become applicable to any particular order or contract.  In accordance with the Zkosemi policy of continuous improvement specifications may change without notice. The publication of information  in this  data sheet does  not  imply freedom  from  patent  or other  protective  rights of Zkosemi or others. Further details are available from any Zkosemi sales representative.
