ZK-SFP+-BX40

10Gbps SFP+ BIDI 40km SMF Transceiver

Features

n Supports 1.0 to 11.3Gb/s bit rates

n Electrical interface specifications

n per SFF-8431,SFF-8472

n Up to 40km on 9/125µm SMF

n Single LC for Bi-directional Transmission

n Single +3.3V power supply

n Hot-pluggable SFP footprint

n Class 1 laser safety certified

n Operating temperature Options

Commercial:0 to +70℃

Industrial:-40 to +85℃

n RoHS Compliant

Applications

n 10G Ethernet

n SDH

Ordering information

Description

ZK-SFP+-BX40-U /ZK-SFP+-BX40-D is a 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s.The high speed 10Gb/s electrical interface is fully compliant with SFI specification.The high performance DFB transmitter and high sensitivity PIN receiver provide superior performance for Multiple applications up to 40km links.The SFP+ Module compliant with SFF-8431, SFF-8432. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.

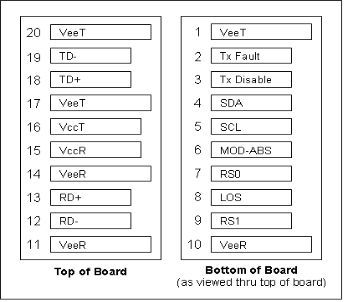

Pin Description

Notes:

1. TX Fault is open collector/drain output which should be pulled up externally with a 4.7KΩ-10KΩ resistor on the host board to supply < VccT +0.3V or VccR + 0.3V. When high, this output indicates a laser fault of some kind. Low indicates normal operation. In the low state, the output will be pulled to <0.8V.

2. TX Disable input is used to shut down the laser output per the state table below. It is pulled up within the module with a 4.7KΩ-10KΩ resistor.

3. Mod-Def 0, 1, 2. These are the module definition pins. They should be pulled up with a 4.7KΩ-10KΩ resistor on the host board to supply less than VccT+0.3V or VccR+0.3V.

Mod-Def 0 is grounded by the module to indicate that the module is present.

Mod-Def 1 is clock line of two wire serial interface for optional serial ID.

Mod-Def 2 is data line of two wire serial interface for optional serial ID.

4. LOS (Loss of signal) is an open collector/drain output which should be pulled up externally with a 4.7KΩ-10KΩ resistor on the host board to supply <VccT+0.3V or VccR+0.3V. When high, this output indicates the received optical power is below the worst case receiver sensitivity (as defined by the standard in use). Low indicates normal operation. In the low state, the output will be pulled to <0.8V.

5. RD-/+: These are the differential receiver outputs. They are AC coupled 100Ω differential lines which should be terminated with 100Ω differential at the user SERDES. The AC coupling is done inside the module and thus not required on the host board.

6. VccR and VccT are the receiver and transmitter power supplies. They are defined as 3.3V±5% at the SFP connector pin. The in-rush current will typically be no more than 30mA above steady state supply current after 500ns.

7. TD-/+: These are the differential transmitter inputs. They are AC coupled differential lines with 100Ω differential termination inside the module. The AC coupling is done inside the module and is thus not required on host board.

Absolute Maximum Ratings

Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are absolute stress ratings only. Functional operation of the device is not implied at these or any other conditions in excess of those given in the operational sections of the data sheet. Exposure to absolute maximum ratings for extended periods can adversely affect device reliability

Recommended Operating Conditions

Transceiver Electrical Characteristics

Notes:

1.  Internally AC coupled and terminated to 100Ω differential load.

2.  Internally AC coupled, but requires a 100Ω differential termination or internal to Serializer/Deserializer.

3.  Pulled up externally with a 4.7KΩ-10KΩ resistor on the host board to VCCT,R.

4.  Mod_Def1 and Mod_Def2 must be pulled up externally with a 4.7KΩ-10KΩ resistor on the host board to VCCT,R.

Transmitter Optical Characteristics

Receiver Optical Characteristics

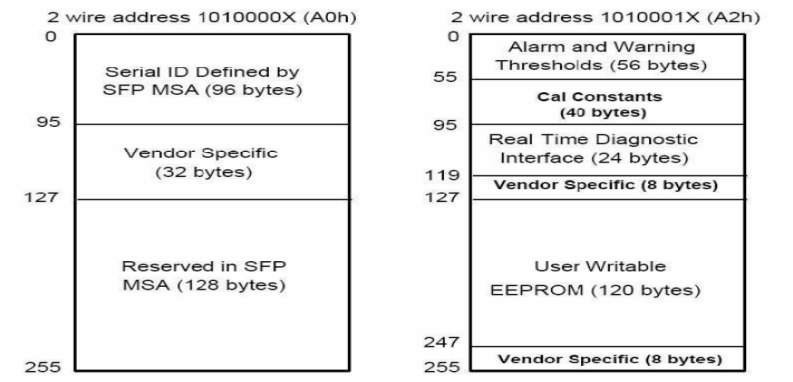

Digital Diagnostic Memory Map

The transceivers provide serial ID memory contents and diagnostic information about the present operating conditions by the 2-wire serial interface (SCL, SDA).The diagnostic information with internal calibration or external calibration all are implemented, including received power monitoring, transmitted power monitoring, bias current monitoring, supply voltage monitoring and temperature monitoring. The digital diagnostic memory map specific data field defines as following.

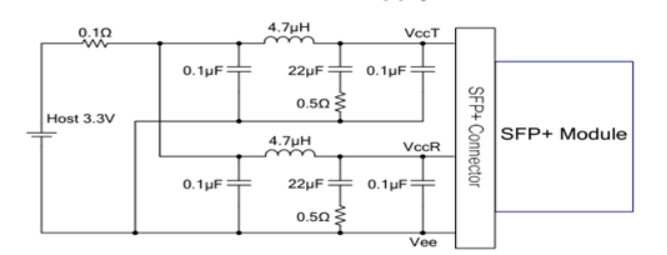

Host Board Power Supply Filter Network

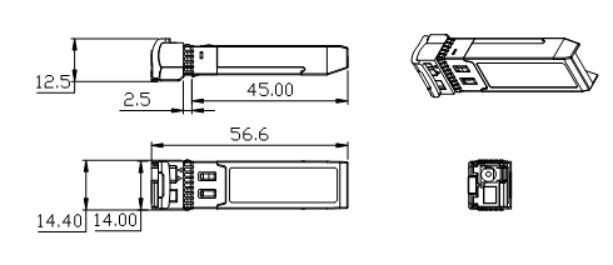

Mechanical specifications

Important Notice

Performance figures, data and any illustrative material  provided  in this  data sheet  are typical  and  must  be specifically confirmed in writing by Zkosemi before they become applicable to any particular order or contract. In accordance with the Zkosemi policy of continuous improvement specifications may change without notice. The publication of information in this data sheet does not imply freedom from patent or other protective rights of Zkosemi or others. Further details are available from any Zkosemi sales representative.
