10GBASE-LR SFP+ 1310nm 40km LC DDM SMF Optical Transceiver Module

Product Description

ZK-SFP+-ER

10Gbps SFP+ ER 1550nm 40km SMF Transceiver

Features

Hot-pluggable SFP+ footprint

Supports 9.5 to 11.3Gb/s bit rates

Power dissipation < 1.5W

Single 3.3V power supply

Maximum link length of 40km

1550nm EML transmitter, PIN photo-detector

Duplex LC connector

Power dissipation < 1.5W

Built-in digital diagnostic functions

Case temperature range :0°C to 70°C

Compliant with SFF-8472 SFP+ MSA.

Compliant to SFP+ SFF-8431 and SFF-8432.

Compliant to 802.3ae 10GBASE-ER.

RoHS Compliant.





Applications

10GBASE-ER/EW (with/without FEC)

10G Fiber Channel (with/without FEC)



Description

ZK-SFP+-ER is designed for use in 10-Gigabit Ethernet links up to 40km over single mode fiber. The module consists of 1550 EML Laser, InGaAs PIN and Preamplifier in a high-integrated optical sub-assembly. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF8472. The module data link up to 40km in 9/125um single mode fiber.

Absolute Maximum Ratings

Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

Storage Temperature

Ts

-40


85

ºC


Storage Ambient Humidity

HA

5


85

%


Power Supply Voltage

VCC

-0.5


4

V


Signal Input Voltage


-0.3


Vcc+0.3

V


Receiver Damage Threshold


+4



dBm




Recommended Operating Conditions

Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

Operating Case Temperature

Tcase

0


70

ºC

Note (1)

Ambient Humidity

HA

5


85

%


Power Supply Voltage

VCC

3.14

3.3

3.46

V


Power Supply Current

ICC



450

mA


Power Supply Noise Rejection




100

mVp-p

100Hz to 1MHz

Transmission Distance




40

km

16:1 split

Coupled fiber

Single mode fiber

ITU-T G.653



Notes: -10 to 60 with 1.5m/s airflow



Optical Characteristics

Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

Transmitter

Average Launched Power

PO

-2


+4

dBm

Note (1)

Extinction Ratio

ER

6



dB


Center Wavelength

λc

1530

1550

1565

nm


Spectrum Band Width (RMS)

σ



1.0

nm


SMSR


30



dB


Transmitter OFF Output Power

POff



-40

dBm


Optical Rise/Fall Time

tr/tf


100

260

ps

Note (2)

Transmitter and Dispersion Penalty

TDP



3.0

dB


Output Eye Mask

Compliant with IEEE 0802.3ae



Receiver

Input Optical Wavelength

λ

1270


1610

nm


Receiver Sensitivity




-14

dBm

Note (3)

Input Saturation Power (Overload)

Psat

0.5



dBm


LOS Detect -Assert Power

PA

-28



dBm


LOS Detect - Deassert Power

PD



-15

dBm


LOS Detect Hysteresis

PHYS

0.5



dB


Note

1. Launched power (avg.) is power coupled into a single mode fiber with master connector.Before of Life

2. These are unfiltered 20-80% values.

3. Measured with conformance test signal for BER = 10^–12.@10.3125Gbps, PRBS=2^31-1,NRZ



Electrical Interface Characteristics

Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

Transmitter

Differential line input Impedance

RIN


100


Ohm


Differential Data Input Swing

VDT

300


700

mVp-p


Transmit Disable Voltage

Vdis

2


Vcc

V

LVTTL

Transmit Enable Voltage

Ven

Vee


Vee+0.8

V

Receiver

Differential Data Output Swing

VDR

400


850

mVp-p

Note (1)

LOS Output Voltage-High

VLOSH

Vee


Vee+0.8

V

LVTTL

LOS Output Voltage-Low

VLOSL

2


VccHOST

V

Notes: Into 100Ω differential termination.

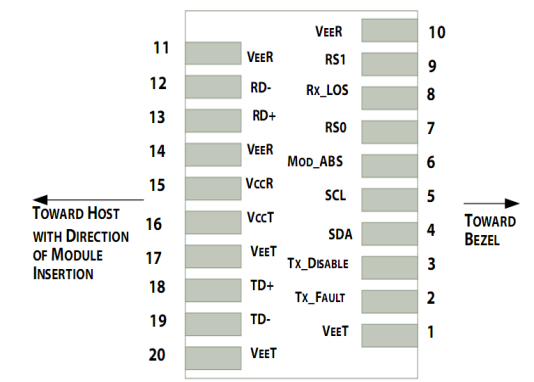

Pin Description

Pin

Symbol

Name/Description

Ref.

1

VEET

Transmitter Ground  (Common with Receiver Ground)

1

2

TFAULT

Transmitter Fault.

2

3

TDIS

Transmitter Disable. Laser output disabled on high or open.

3

4

SDA

2-wire Serial Interface Data Line

4

5

SCL

2-wire Serial Interface Clock Line

4

6

MOD_ABS

Module Absent. Grounded within the module

4

7

RS0

Rate Select 0

5

8

LOS

Loss of Signal indication.  Logic 0 indicates normal operation.

6

9

RS1

No connection required

1

10

VEER

Receiver Ground  (Common with Transmitter Ground)

1

11

VEER

Receiver Ground  (Common with Transmitter Ground)

1

12

RD-

Receiver Inverted DATA out.  AC Coupled


13

RD+

Receiver Non-inverted DATA out.  AC Coupled


14

VEER

Receiver Ground  (Common with Transmitter Ground)

1

15

VCCR

Receiver Power Supply


16

VCCT

Transmitter Power Supply


17

VEET

Transmitter Ground  (Common with Receiver Ground)

1

18

TD+

Transmitter Non-Inverted DATA in. AC Coupled.


19

TD-

Transmitter Inverted DATA in.  AC Coupled.


20

VEET

Transmitter Ground  (Common with Receiver Ground)

1

Notes:

1. Circuit ground is internally isolated from chassis ground.

2. TFAULT is an open collector/drain output, which should be pulled up with a 4.7k – 10k Ohms resistor on the host board if intended for use. Pull up voltage should be between 2.0V to Vcc + 0.3V.A high output indicates a transmitter fault caused by either the TX bias current or the TX output power exceeding the preset alarm thresholds. A low output indicates normal operation. In the low state, the output is pulled to <0.8V.

3. Laser output disabled on TDIS >2.0V or open, enabled on TDIS <0.8V.

4. Should be pulled up with 4.7kΩ- 10kΩ host board to a voltage between 2.0V and 3.6V. MOD_ABS pulls line low to indicate module is plugged in.

5. Internally pulled down per SFF-8431 Rev 4.1.

6. LOS is open collector output. It should be pulled up with 4.7kΩ – 10kΩ on host board to a voltage between 2.0V and 3.6V. Logic 0 indicates normal operation; logic 1 indicates loss of signal.

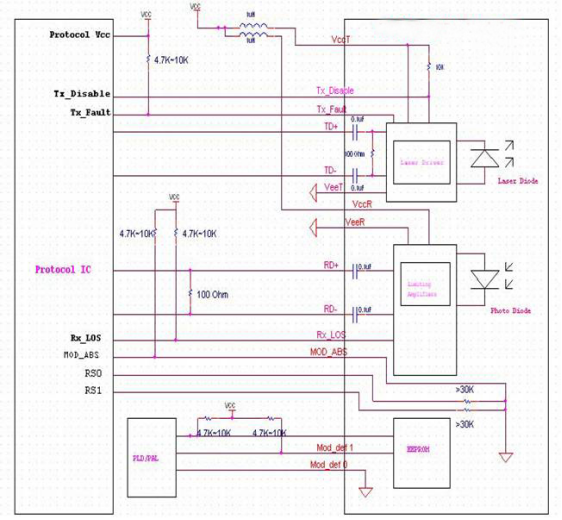

Recommended Interface Circuit

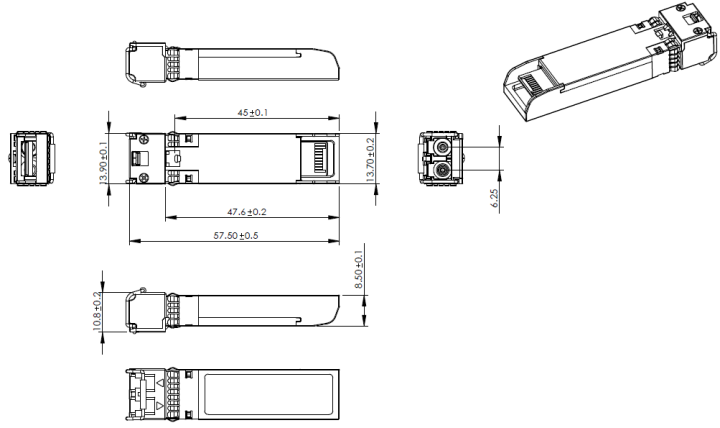

Mechanical Dimensions


Important Notice

Performance figures, data and any illustrative material  provided  in this  data sheet  are typical  and  must  be specifically confirmed in writing by Zkosemi before they become applicable to any particular order or contract. In accordance with the Zkosemi policy of continuous improvement specifications may change without notice. The publication of information in this data sheet does not imply freedom from patent or other protective rights of Zkosemi or others. Further details are available from any Zkosemi sales representative.
