10GBASE-ZR SFP+ 1550nm 80km LC DDM SMF Optical Transceiver Module
ZK-SFP+-ZR
10Gbps SFP+ ZR 1550nm 80km SMF Transceiver
Features
n Hot-pluggable SFP+ footprint
n Supports 9.5 to 11.3Gb/s bit rates
n Power dissipation <2W
n Single 3.3V power supply
n Maximum link length of 80km
n 1550nm EML transmitter, APD photo-detector
n Duplex LC connector
n Power dissipation < 2W
n Built-in digital diagnostic functions
n Case temperature range :0°C to 70°C l
n Compliant with SFF-8472 SFP+ MSA.
n Compliant to SFP+ SFF-8431 and SFF-8432.
n Compliant to 802.3ae 10GBASE-ZR.
n RoHS Compliant.
Applications
n 10G Ethernet
n 10G Fiber Channel (with/without FEC)
Description
ZK-SFP+-ZR is designed for use in 10-Gigabit Ethernet links up to 80km over single mode fiber. The module consists of 1550 EML Laser, InGaAs APD and Preamplifier in a high-integrated optical sub-assembly. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF8472. The module data link up to 80km in 9/125um single mode fiber.
Absolute Maximum Ratings
Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
Storage Temperature | Ts | -40 | 85 | ºC | ||
Storage Ambient Humidity | HA | 5 | 85 | % | ||
Power Supply Voltage | VCC | -0.5 | 4 | V | ||
Signal Input Voltage | -0.3 | Vcc+0.3 | V | |||
Receiver Damage Threshold | +4 | dBm |
Recommended Operating Conditions
Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
Operating Case Temperature | Tcase | 0 | 70 | ºC | Note (1) | |
Ambient Humidity | HA | 5 | 85 | % | ||
Power Supply Voltage | VCC | 3.14 | 3.3 | 3.46 | V | |
Power Supply Current | ICC | 450 | mA | |||
Power Supply Noise Rejection | 100 | mVp-p | 100Hz to 1MHz | |||
Transmission Distance | 80 | km | ||||
Coupled fiber | Single mode fiber | ITU-T G.653 |
Notes: -10 to 60degC with 1.5m/s airflow
Optical Characteristics
Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
Transmitter | ||||||
Average Launched Power | PO | 0 | +5 | dBm | Note (1) | |
Extinction Ratio | ER | 6 | dB | |||
Center Wavelength | λc | 1530 | 1550 | 1565 | nm | |
Spectrum Band Width (RMS) | σ | 1.0 | nm | |||
SMSR | 30 | dB | ||||
Transmitter OFF Output Power | POff | -40 | dBm | |||
Optical Rise/Fall Time | tr/tf | 100 | 260 | ps | Note (2) | |
Transmitter and Dispersion Penalty | TDP | 3.0 | dB | |||
Output Eye Mask | Compliant with IEEE 0802.3ae | |||||
Receiver | ||||||
Input Optical Wavelength | λ | 1270 | 1610 | nm | ||
Receiver Sensitivity | -22 | dBm | Note (3) | |||
Input Saturation Power (Overload) | Psat | -8 | dBm | |||
LOS Detect -Assert Power | PA | -37 | dBm | |||
LOS Detect - Deassert Power | PD | -23 | dBm | |||
LOS Detect Hysteresis | PHYS | 0.5 | dB |
Notes:
1. Launched power (avg.) is power coupled into a single mode fiber with master connector.(Before of Life)
2. These are unfiltered 20-80% values.
3. Measured with conformance test signal for BER = 10^–12.@10.3125Gbps, PRBS=2^31-1,NRZ
Electrical Interface Characteristics
Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
Transmitter | ||||||
Differential line input Impedance | RIN | 100 | Ohm | |||
Differential Data Input Swing | VDT | 300 | 700 | mVp-p | ||
Transmit Disable Voltage | Vdis | 2 | Vcc | V | LVTTL | |
Transmit Enable Voltage | Ven | Vee | Vee+0.8 | V | ||
Receiver | ||||||
Differential Data Output Swing | VDR | 400 | 850 | mVp-p | Note (1) | |
LOS Output Voltage-High | VLOSH | Vee | Vee+0.8 | V | LVTTL | |
LOS Output Voltage-Low | VLOSL | 2 | VccHOST | V |
Notes: Into 100Ω differential termination.

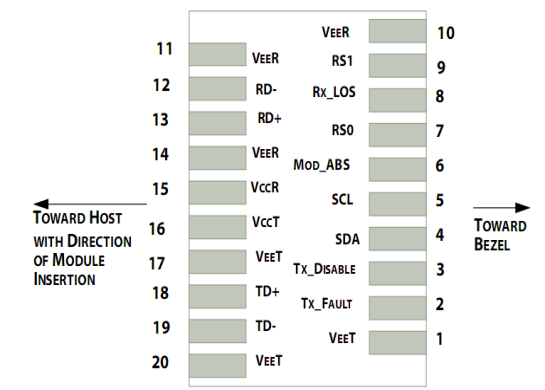

Pin Description
Pin | Symbol | Name/Description | Ref. |
1 | VEET | Transmitter Ground (Common with Receiver Ground) | 1 |
2 | TFAULT | Transmitter Fault. | 2 |
3 | TDIS | Transmitter Disable. Laser output disabled on high or open. | 3 |
4 | SDA | 2-wire Serial Interface Data Line | 4 |
5 | SCL | 2-wire Serial Interface Clock Line | 4 |
6 | MOD_ABS | Module Absent. Grounded within the module | 4 |
7 | RS0 | Rate Select 0 | 5 |
8 | LOS | Loss of Signal indication. Logic 0 indicates normal operation. | 6 |
9 | RS1 | No connection required | 1 |
10 | VEER | Receiver Ground (Common with Transmitter Ground) | 1 |
11 | VEER | Receiver Ground (Common with Transmitter Ground) | 1 |
12 | RD- | Receiver Inverted DATA out. AC Coupled | |
13 | RD+ | Receiver Non-inverted DATA out. AC Coupled | |
14 | VEER | Receiver Ground (Common with Transmitter Ground) | 1 |
15 | VCCR | Receiver Power Supply | |
16 | VCCT | Transmitter Power Supply | |
17 | VEET | Transmitter Ground (Common with Receiver Ground) | 1 |
18 | TD+ | Transmitter Non-Inverted DATA in. AC Coupled. | |
19 | TD- | Transmitter Inverted DATA in. AC Coupled. | |
20 | VEET | Transmitter Ground (Common with Receiver Ground) | 1 |
Notes:
1. Circuit ground is internally isolated from chassis ground.
2. TFAULT is an open collector/drain output, which should be pulled up with a 4.7k – 10k Ohms resistor on the host board if intended for use. Pull up voltage should be between 2.0V to Vcc + 0.3V.A high output indicates a transmitter fault caused by either the TX bias current or the TX output power exceeding the preset alarm thresholds. A low output indicates normal operation. In the low state, the output is pulled to <0.8V.
3. Laser output disabled on TDIS >2.0V or open, enabled on TDIS <0.8V.
4. Should be pulled up with 4.7kΩ- 10kΩ host board to a voltage between 2.0V and 3.6V. MOD_ABS pulls line low to indicate module is plugged in.
5. Internally pulled down per SFF-8431 Rev 4.1.
6. LOS is open collector output. It should be pulled up with 4.7kΩ – 10kΩ on host board to a voltage between 2.0V and 3.6V. Logic 0 indicates normal operation; logic 1 indicates loss of signal.

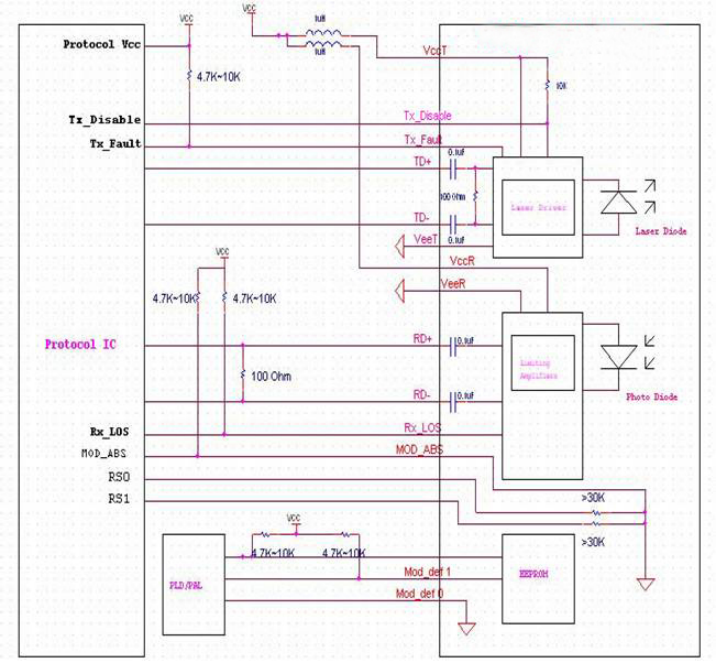

Recommended Interface Circuit

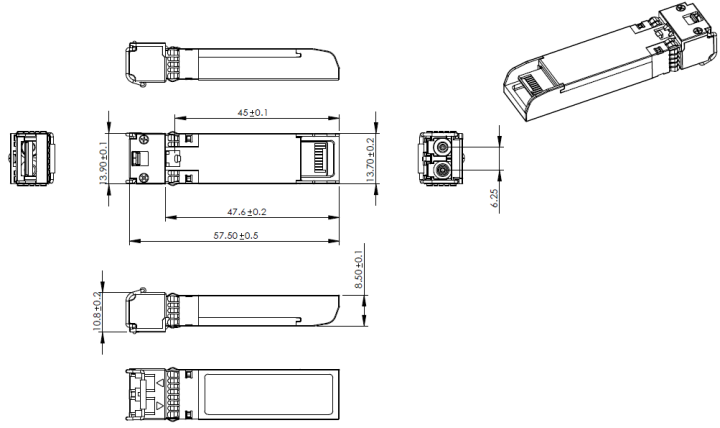

Mechanical Dimensions
