ZK-SFP+-T

10Gbps SFP+ Copper 80m RJ-45 Transceiver

Features

n Up to 10Gb/s bi-directional data links

n l  Hot-pluggable SFP+ footprint

n l  Fully metallic enclosure for low EMI

n l  Low power dissipation

n l  Compact RJ-45 connector assembly

n l  Access to physical layer IC via 2-wire serial bus

n l  Supports Links up to 80m using Cat 6a/7 Cable

n l  RoHS Compliant

n l  Operating case temperature: 0℃ to 70℃

Applications

n 10 Gigabit Ethernet over Cat 6a/7 cable

Description

ZK-SFP+-T Copper Small Form Pluggable (SFP) transceivers are high performance, cost effective module compliant with the 10G Ethernet and 10GBASE-T standards as specified in IEEE 802.3az, which supporting 10Gb ps data- rate up to 80 meters reach over unshielded    twisted-pair category 6a/7 cables. The module provides standard serial ID information compliant with SFP+ MSA, which can be accessed with address of A0h via the 2wire serial EEPROM protocol.

+3.3V Volt Electrical Power Interface

Environmental Specifications

General Specifications

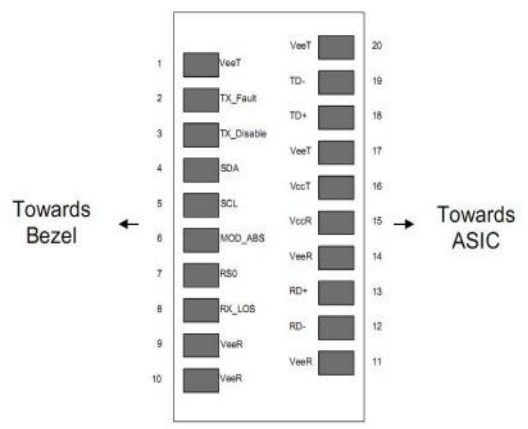

Pin Descriptions

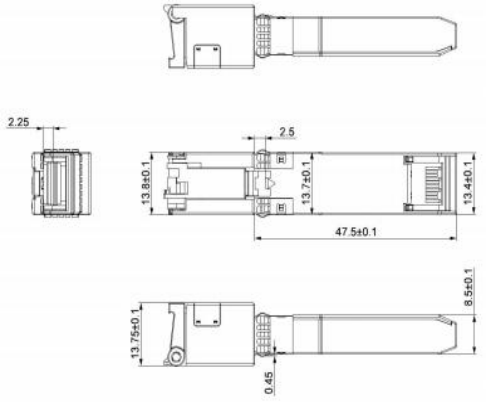

Mechanical Dimensions

Important Notice

Performance figures, data and any illustrative material  provided  in this  data sheet  are typical  and  must  be specifically confirmed in writing by Zkosemi before they become applicable to any particular order or contract. In accordance with the Zkosemi policy of continuous improvement specifications may change without notice. The publication of information in this data sheet does not imply freedom from patent or other protective rights of Zkosemi or others. Further details are available from any Zkosemi sales representative.
