100Gbps QSFP28 BIDI LR1 10km SMF Transceiver

100Gbps QSFP28 BIDI LR1 10km SMF Transceiver

Product Descriptions

100Gbps QSFP28 BIDI LR1 10km SMF Transceiver

Product Description

ZK-QSFP28-100G-BX10

100Gbps QSFP28 BIDI LR1 10km SMF Transceiver



Features

Lane signaling rate 106.25Gb/s with PAM4

Up to 10km transmission on SMF

EML Laser and PIN receiver

4x25.78Gb/s with NRZ electrical interface (CAUI-4)

Support KP4 FEC inside the module

High speed I/O electrical interface

I2C interface with integrated Digital Diagnostic monitoring

QSFP28 MSA package with simplex LC connector

Single +3.3V power supply

Power consumption <3.5 W

Operating case temperature: 0 to +70 °C

Compliant to SFF-8636&SFF-8679 standard

Compliant to 100G Lambda MSA 100G-LR1 Optical Specifications

Complies with EU Directive 2015/863/EU



Applications

Data Center

100GBASE-LR BIDI


Descriptions

The 100G QSFP28 LR1 BIDI is designed for 10km optical communication applications. It is intended for the service with  single  mode fiber  in  100Gb/s  high  speed  data  communications.  The  optical  signals  are multiplexed to a single-mode fiber through commercial standard LC connector.



Ordering Information

Part No.

Date Rate

Wavelength

Distance

Temp

DDMI

ZK-QSFP28-100G-BX10-U

106.25Gb ps

Tx1271/Rx1331

10km

0~70

Yes

ZK-QSFP28-100G-BX10-D

106.25Gb ps

Tx1331/Rx1271

10km

0~70

Yes

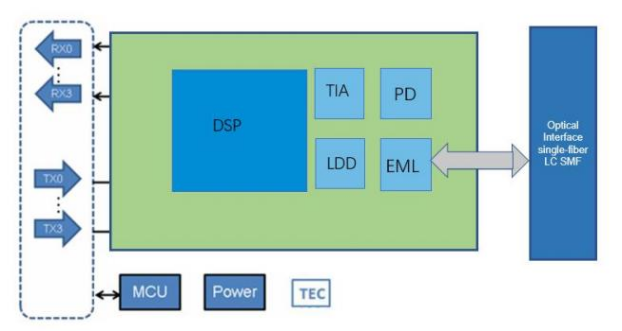

Module Block Diagram



Absolute Maximum Ratings

Parameter

Symbol

Min.

Typical

Max.

Unit

Notes

Storage Temperature

TS

-40

-

+85

°C


Supply Voltage

VCC

-0.5

-

+4.0

V


Operating Relative Humidity

RH

-

-

+85

%





Recommended Operating Conditions

Parameter

Symbol

Min.

Typical

Max.

Unit

Notes

Operating Case Temperature

TC

0

-

+70

°C


Power Supply Voltage

VCC

3.13

3.3

3.47

V


Power consumption

ICC



3.5

W


Transmission Distance

TD

-

-

10

km

Over SMF



Electrical Characteristics

Parameter

Symbol

Min.

Typical

Max.

Unit

Notes

Transmitter (Module Input)

Input Differential Impedance

Rin

-

100

-

Ohm


Differential Data Input Amplitude

VIN,P-P


-

900

mVpp


Differential termination mismatch (max)

D-mismatch

-

-

10

%


DC common-mode input voltage


-0.3

-

2.8

V


Transition time(20%~80%)

Tr Tf

10

-

-

ps


LPMode, Reset and ModSelL / Tx dis

VIL

-0.3

-

0.8

V


LPMode, Reset and ModSelL / Tx dis

VIH

2.0

-

VCC+0.3

V


Receiver (Module Output)

Output Differential Impedance

Rout

-

100

-

Ohm


Differential Data Output Amplitude

VOUTP-P

-

-

900

mVpp


Differential termination mismatch (max)

D-mismatch

-

-

10

%


Transition time, 20% to 80%

Tr Tf

12

-


ps


Mod PrsL and IntL/ Rx los

VOL

0

-

0.4

V


Mod PrsL and IntL/ Rx los

VOH

VCC-0.5

-

VCC+0.3

V






Optical and Characteristics

Parameter

Symbol

Min.

Typical

Max.

Unit

Notes

Transmitter

Center Wavelength

CW

1264.5

1271

1277.5

nm


1324.5

1331

1337.5

nm


Signaling Rate

SR



53.125

GBd


Frequency Offset

Foffset

-100


100

ppm


Average Launch Power

PTX

-1.4

-

4.5

dBm

1

Outer Optical Modulation Amplitude

OMA

0.7

-

4.7

dBm

1

Transmitter and dispersion eye closure for PAM4 (TDECQ) (max)

TDECQ



-



-

3.4

dBm


Average Output Power (Laser Turn off)

Poff

-

-

-30

dBm


Side Mode Suppression Ratio

SMSR

30

-

-

dB


Extinction Ratio

ER

3.5

-

-

dB


RIN_OMA

RIN

-

-

-136

dB/Hz


Transmitter reflectance

Tref

-

-

-26

dB


Optical Return Loss Tolerance

ORLT

-

-

15.6

dB


Receiver

Center Wavelength

CW

1324.5

1331

1337.5

nm


1264.5

1271

1277.5

nm


Damage threshold

Pdamage

5.5

-

-

dBm

2

Average Rx Power

PRx

-7.7

-

4.5

dBm

3

Receive power _OMAouter

POMA

-

-

4.7

dBm


Receiver sensitivity _OMAouter for TDECQ < 1.4 dB

for 1.4 dB TDECQ 3.4 dB

SEN

_OMA



-



-

-6.1

–7.5 + TDECQ



dBm



4

Reflectance

Ref

-

-

-26

dB


Los Assert

LosA

-26

-


dBm


Los De-Assert

LosDA

-

-

-10

dBm


Los Hysteresis

LosH

0.5

-

-

dB


Stressed receiver sensitivity _OMAouter

SRS

-

-

-4.1

dBm

5

Conditions of stressed receiver sensitivity teste :

Stressed eye closure for PAM4 (SECQ)




3.4

dB

6

SECQ-10*lgCeq




3.4

dB

6

Notes:

1. The optical power is launched into SMF.

2. The receiver shall be able to tolerate, without damage, continuous exposure to an optical input signal having this average power level. The receiver does not have to operate correctly at this input power.

3. Average receive power, each lane (min) is informative and not the principal indicator of signal strength.

4. Measured with conformance test signal at TP3 using the test pattern PRBS31Q or scrambled idle for stressed receiver sensitivity for the BER= 2.4x10-4.

5. Measured with conformance test signal at TP3 (see3.11) for the BER specified in IEEE Std 802.3cu

6. Ceq is a coefficient defined in IEEE Std 802.3-2022 clause 121.8.5.3 which accounts for reference equalizer noise enhancement.



Digital Diagnostics

Parameter

Range

Accuracy

Unit

Calibration

Temperature

0 to 70

±3

ºC

Internal

Voltage

0 to Vcc

±3%

V

Internal

Tx Bias Current

0 to 100

±10%

mA

Internal

Tx Output Power

-1.4 to 4.5

±3

dB

Internal

Rx Input Power

-7.7 to 4.5

±3

dB

Internal

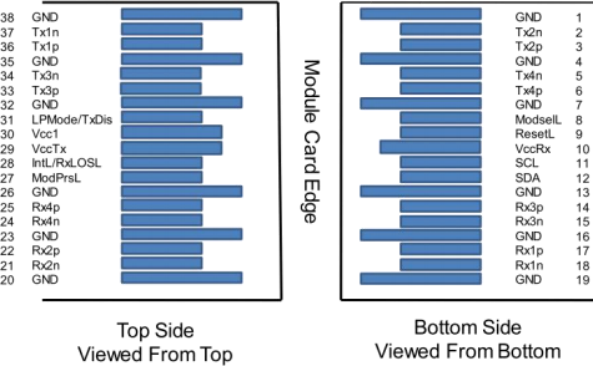

Pin Diagram





Pin Definitions

PIN

Logic

Symbol

Description

Notes

1


GND

Ground

1

2

CML-I

Tx2n

Transmitter Inverted Data Input


3

CML-I

Tx2p

Transmitter Non-Inverted Data output


4


GND

Ground

1

5

CML-I

Tx4n

Transmitter Inverted Data Input


6

CML-I

Tx4p

Transmitter Non-Inverted Data output


7


GND

Ground

1

8

LVTLL-I

ModSelL

Module Select


9

LVTLL-I

ResetL

Module Reset


10


VccRx

+3.3V Power Supply Receiver

2

11

LVCMOS-I/O

SCL

2-Wire Serial Interface Clock


12

LVCMOS-I/O

SDA

2-Wire Serial Interface Data


13


GND

Ground


14

CML-O

Rx3p

Receiver Non-Inverted Data Output


15

CML-O

Rx3n

Receiver Inverted Data Output


16


GND

Ground

1

17

CML-O

Rx1p

Receiver Non-Inverted Data Output


18

CML-O

Rx1n

Receiver Inverted Data Output


19


GND

Ground

1

20


GND

Ground

1

21

CML-O

Rx2n

Receiver Inverted Data Output


22

CML-O

Rx2p

Receiver Non-Inverted Data Output


23


GND

Ground

1

24

CML-O

Rx4n

Receiver Inverted Data Output

1

25

CML-O

Rx4p

Receiver Non-Inverted Data Output


26


GND

Ground

1

27

LVTTL-O

Mod PrsL

Module Present


28

LVTTL-O

IntL/Rx_LOS

Interrupt/Rx_LOS

3

29


VccTx

+3.3 V Power Supply transmitter

2

30


Vcc1

+3.3 V Power Supply

2

31

LVTTL-I

LPMode/TxDIS

Low Power Mode/Tx_Disable

3

32


GND

Ground

1

33

CML-I

Tx3p

Transmitter Non-Inverted Data Input


34

CML-I

Tx3n

Transmitter Inverted Data Output


35


GND

Ground

1

36

CML-I

Tx1p

Transmitter Non-Inverted Data Input


37

CML-I

Tx1n

Transmitter Inverted Data Output


38


GND

Ground

1

Notes:

1. GND is the symbol for signal and supply (power) common for the QSFP28 module. All are common within the QSFP28 module and all     module voltages are referenced to this potential unless otherwise noted. Connect these directly to the host board signal-common ground plane.

2. Vcc Rx, Vcc1 and Vcc Tx are the receiver and transmitter power supplies and shall be applied concurrently. Requirements defined for the host side of the Host Edge Card Connector are listed in MSA. The connector pins are each rated for a maximum current of 1000 mA.

3. Two Multi-Purpose Pin for supporting Tx_DIS and Rx_LOS function in the 100G QSFP28 LR1 BIDI module.

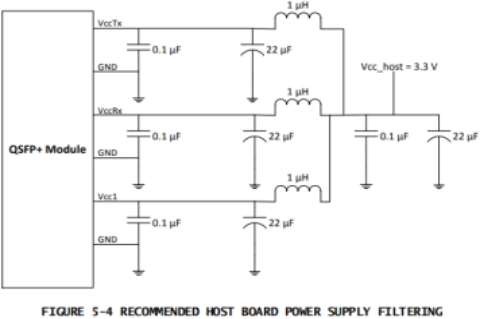

Recommended Interface Circuit

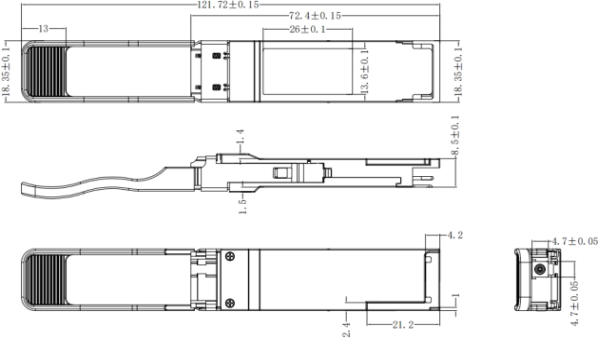

Mechanical Dimensions



Important Notice

Performance figures, data and any illustrative material  provided  in this  data sheet  are typical  and  must  be specifically confirmed in writing by Zkosemi before they become applicable to any particular order or contract. In accordance with the Zkosemi policy of continuous improvement specifications may change without notice. The publication of information in this data sheet does not imply freedom from patent or other protective rights of Zkosemi or others. Further details are available from any Zkosemi sales representative
