100Gbps QSFP28 ZR4 1310nm 80km SMF Transceiver
ZK-QSFP28-100G-ZR4
100Gbps QSFP28 ZR4 1310nm 80km SMF Transceiver
Features
n Compliant with 100GBASE-ZR4
n Support line rates from 103.125 Gb/s to 112.2 Gb/s OTU4
n Built-in 4-channel Clock and Data Recovery (CDR) in TX and RX
n LAN WDM EML laser and PIN receiver with SOA
n Up to 80km reach for G.652 SMF
n Hot pluggable 38 pin electrical interface QSFP28 MSA compliant
n Duplex LC optical receptacle
n RoHS-10 compliant and lead-free Excellent EMI performance
n Single +3.3V power supply
n Maximum power consumption 6W Case operating temperature
Commercial: 0 ~ 70℃
Extended: -5 ~ +85℃
Industrial: -40 ~ +85℃
Applications
n 100GBASE-ZR4 Ethernet Links
n Infiniband QDR and DDR interconnects
n Telecom networking
Description
This product is designed for 80km optical communication applications. This module contains 4-lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial inter-face. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector.
Absolute Maximum Ratings
It has to be noted that the operation in excess of any individual absolute maximum ratings might cause permanent damage to this module.
Parameter | Symbol | Min | Max | Unit | Notes |
Storage Temperature | TS | -40 | 85 | ℃ | |
Power Supply Voltage | VCC | -0.3 | 4.0 | V | |
Relative Humidity (non-condensation) | RH | 15 | 85 | % | |
Damage Threshold | THd | 6.5 | dBm |
Recommended Operating Conditions
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Notes |
Operating Case Temperature |
TOP | 0 | 70 | ℃ | Commercial | |
-5 | 85 | ℃ | Extended | |||
-40 | 85 | ℃ | Industrial | |||
Power Supply Voltage | VCC | 3.135 | 3.3 | 3.465 | V | |
Data Rate, each Lane | 25.78125 | 28.05 | Gb/s | |||
Control Input Voltage High | 2 | Vcc | V | |||
Control Input Voltage Low | 0 | 0.8 | V | |||
Link Distance (SMF) | D | 80 | km | 1 |
Notes:
1. Depending on actual fiber loss/km (link distance specified is for fiber insertion loss of 0.35dB/km)
Electrical Characteristics
The following electrical characteristics are defined over the Recommended Operating Environment unless otherwise specified.
Parameter | Symbol | Min. | Typ. | Max | Unit | Notes |
Power Consumption | p | 6 | W | |||
Supply Current | Icc | 1876 | mA | |||
Transmitter (each Lane) | ||||||
Input differential impedance | Rin | 100 | Ω | |||
Differential Termination Mismatch |
10 |
% | ||||
Differential Data Input Amplitude | Vin, PP |
180 |
1000 |
mV | ||
LPMode, Reset and ModSelL | VIL | -0.3 | 0.8 | V | ||
VIH | 2 | Vcc+0.3 | V | |||
Receiver | ||||||
Differential Data Output Amplitude | Vout, PP | 350 | 900 | mV | ||
Differential Termination Mismatch | 10 |
% | ||||
Transition Time, 20 to 80% | 9.5 | ps | ||||
ModPrsL and IntL | VOL | 0 | 0.4 | V | ||
VOH | Vcc-0.5 | Vcc+0.3 | V | |||
Optical Characteristics
The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.
Parameter | Symbol | Min. | Typical | Max | Unit | Notes |
Transmitter | ||||||
Lane wavelength（range） | L0 | 1308.09 | 1309.14 | 1310.09 | nm | |
L1 | 1303.54 | 1304.58 | 1305.63 | nm | ||
L2 | 1299.02 | 1300.05 | 1301.09 | nm | ||
L3 | 1294.53 | 1295.56 | 1296.59 | nm | ||
Signaling rate, each lane | 25.78125 | 28.05 | Gb/s | |||
Side-mode suppression ratio |
SMSR |
30 | ||||
Total launch power | PT | 7.0 | 12 | dBm | ||
Average launch power, each lane |
Pavg |
1.0 |
6 |
dBm | ||
Extinction Ratio | ER | 6.0 | dB | |||
Difference in Launch Power between any Two Lanes (OMA) |
Ptx,diff |
3.6 |
dB | |||
Average launch power of OFF transmitter, each lane |
Poff |
-30 |
dBm | |||
Transmitter reflectance | RT | -12 | dB | |||
RIN20OMA | RIN | -130 | dB/Hz | |||
Optical Return Loss Tolerance |
TOL |
20 |
dB | |||
Transmitter eye mask {X1, X2, X3, Y1, Y2, Y3} |
{0.25, 0.4, 0.45, 0.25, 0.28, 0.4} | |||||
Receiver | ||||||
Lane wavelength（range） | L0 | 1294.53 | 1295.56 | 1296.59 | nm | |
L1 | 1299.02 | 1300.05 | 1301.09 | nm | ||
L2 | 1303.54 | 1304.58 | 1305.63 | nm | ||
L3 | 1308.09 | 1309.14 | 1310.09 | nm | ||
Signaling rate, each lane | 25.78125 | 28.05 | Gb/s | |||
Average Receive Power, each Lane |
-30 |
-7 |
dBm | |||
Input Saturation Power, each Lane |
-7 |
dBm | ||||
Receiver reflectance | -26 | dB | ||||
Receiver sensitivity Average, each lane | SEN1 | -23 | dBm | 1 | ||
SEN2 | -22 | dBm | 2 | |||
SEN3 | -29 | dBm | 3 | |||
SEN4 | -28 | dBm | 4 | |||
LOS Assert | LOSA | -40 | dBm | |||
LOS Deassert | LOSD | -29 | dBm | |||
LOS Hysteresis | LOSH | 0.5 | dB | |||
Notes:
1. Measured @25.78125Gbps, ER=6dB, BER=<1E-12, PRBS=2^31-1
2. Measured @28.05Gbps, ER=6dB, BER=<1E-12, PRBS=2^31-1
3. Measured @25.78125Gbps, ER=6dB, BER=<5E-5, PRBS=2^31-1
Measured with FEC @25.78125Gbps, ER=6dB, BER=<1E-12, PRBS=2^31-1
4. Measured @28.05Gbps, ER=6dB, BER=<5E-5, PRBS=2^31-1
Measured with FEC @28.05Gbps, ER=6dB, BER=<1E-12, PRBS=2^31-1
Digital Diagnostic Functions
The following digital diagnostic characteristics are defined over the normal operating conditions unless otherwise specified.
Parameter | Symbol | Min. | Max | Unit | Range |
Temperature monitor absolute error | DMI_ Temp | -3 | 3 | ℃ | 0~85C |
Supply voltage monitor absolute error | DMI _VCC | -3 | 3 | % | 0~Vcc |
RX power monitor absolute error | DMI_RX | -3 | 3 | dB | -7~-30dBm |
Bias current monitor error | DMI_ bias | -10 | 10 | % | 0~100mA |
TX power monitor absolute error | DMI_TX | -3 | 3 | dB | 1~6dBm |

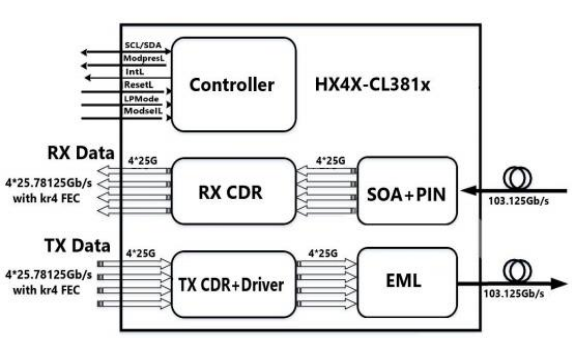

Transceiver Block Diagrams

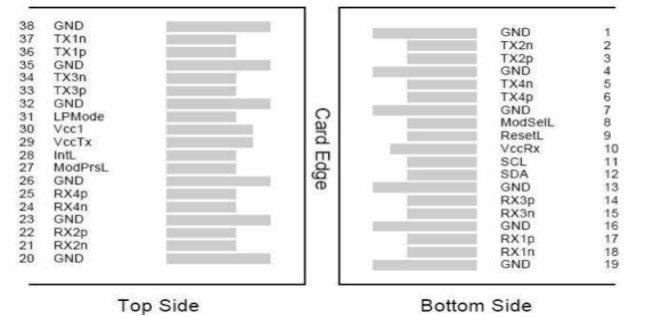

Pin Assignment and Pin Description
Pin | Symbol | Name/Description | Notes |
1 | GND | Transmitter Ground (Common with Receiver Ground) | 1 |
2 | Tx2n | Transmitter Inverted Data Input | |
3 | Tx2p | Transmitter Non-Inverted Data Input | |
4 | GND | Transmitter Ground (Common with Receiver Ground) | 1 |
5 | Tx4n | Transmitter Inverted Data Input | |
6 | Tx4p | Transmitter Non-Inverted Data Input | |
7 | GND | Transmitter Ground (Common with Receiver Ground) | 1 |
8 | ModSelL | Module Select | |
9 | ResetL | Module Reset | |
10 | VccRx | 3.3V Power Supply Receiver | 2 |
11 | SCL | 2-Wire serial Interface Clock | |
12 | SDA | 2-Wire serial Interface Data | |
13 | GND | Transmitter Ground (Common with Receiver Ground) | |
14 | Rx3p | Receiver Non-Inverted Data Output | |
15 | Rx3n | Receiver Inverted Data Output | |
16 | GND | Transmitter Ground (Common with Receiver Ground) | 1 |
17 | Rx1p | Receiver Non-Inverted Data Output | |
18 | Rx1n | Receiver Inverted Data Output | |
19 | GND | Transmitter Ground (Common with Receiver Ground) | 1 |
20 | GND | Transmitter Ground (Common with Receiver Ground) | 1 |
21 | Rx2n | Receiver Inverted Data Output | |
22 | Rx2p | Receiver Non-Inverted Data Output | |
23 | GND | Transmitter Ground (Common with Receiver Ground) | 1 |
24 | Rx4n | Receiver Inverted Data Output | 1 |
25 | Rx4p | Receiver Non-Inverted Data Output | |
26 | GND | Transmitter Ground (Common with Receiver Ground) | 1 |
27 | ModPrsl | Module Present | |
28 | IntL | Interrupt | |
29 | VccTx | 3.3V power supply transmitter | 2 |
30 | Vcc1 | 3.3V power supply | 2 |
31 | LPMode | Low Power Mode | |
32 | GND | Transmitter Ground (Common with Receiver Ground) | 1 |
33 | Tx3p | Transmitter Non-Inverted Data Input | |
34 | Tx3n | Transmitter Inverted Data Input | |
35 | GND | Transmitter Ground (Common with Receiver Ground) | 1 |
36 | Tx1p | Transmitter Non-Inverted Data Input | |
37 | Tx1n | Transmitter Inverted Data Input | |
38 | GND | Transmitter Ground (Common with Receiver Ground) | 1 |
Notes:
1. GND is the symbol for signal and supply (power) common for QSFP28 modules. All are common within the QSFP28 module and all module voltages are referenced to this potential unless otherwise noted. Connect these directly to the host board signal common ground plane.
2. VccRx, Vcc1 and VccTx are the receiving and transmission power suppliers and shall be applied concurrently. Recommended host board power supply filtering is shown below. Vcc Rx, Vcc1 and Vcc Tx may be internally connected within the QSFP28 transceiver module in any combination. The connector pins are each rated for a maximum current of 1000mA.

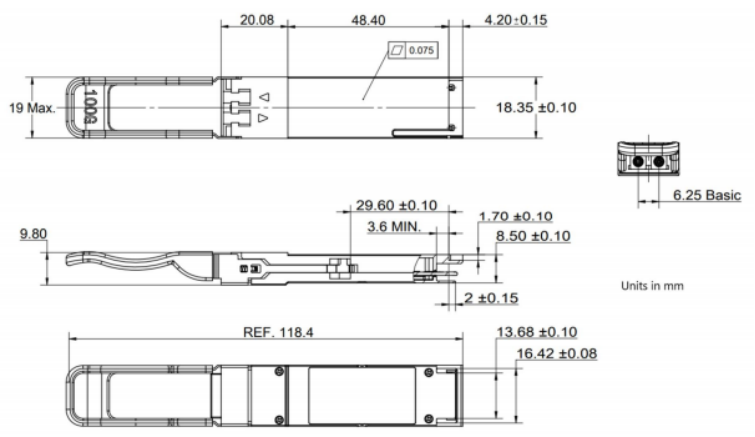

Mechanical Dimensions
Important Notice
